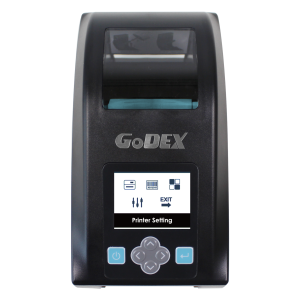

DT200i+ / DT230i+

More Functionality in Less Space !

Description
Additional information

The DT200i+ series is a cleverly conceived design that combines multiple capabilities into a single platform. It provides 203 dpi or 300 dpi printing resolution and the DT200i+ features a 2.4-inch color display for easy operation. An extensive range of optional accessories are also available, and the DT200L+ even supports linerless media printing. This series can fulfill all of your direct thermal printing requirements.

Specially Designed Mechanism
Compatible Interface
Large Memory
User-Friendly Operation
2.4” Color LCD & Stand-Alone Operation

Print Method	Direct Thermal
Resolution	203 dpi (8 dots/ mm), 300 dpi (12 dots/ mm)
Print Speed	5 IPS (127 mm / s), 7 IPS (178 mm / s)
Print Width	2,24” (57 mm), 4,25” (108 mm)
Print Length	Min. 0,16” (4 mm); Max. 30“(762 mm), Min. 0,16” (4 mm); Max. 68” (1727 mm)
Processor	32 Bit RISC CPU
Memory	128 MB Flash, 128 MB SDRAM

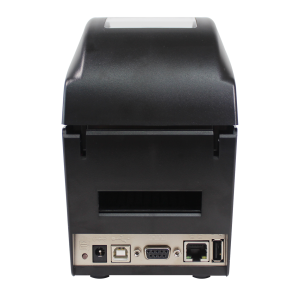

Interfaces	Ethernet 10/100 Mbps, Serial port: RS-232 (DB-9), USB 2.0 (B-Type), USB Host (A-Type)
Ribbon	N/A
Control Panel	Calibration button, Calibration button, Color TFT LCD with navigation button, Function Key : FEED, Power on/off
Series	DT Series
