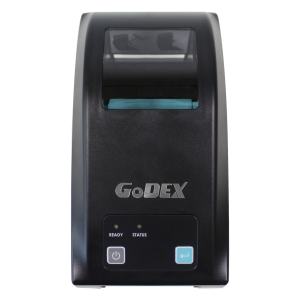

DT200+ / DT230+

More Functionality in Less Space !

The DT200+ series is a cleverly conceived design that combines multiple capabilities into a single platform. It provides 203 dpi or 300 dpi printing resolution and the DT200i+ features a 2.4-inch color display for easy operation. An extensive range of optional accessories are also available, and the DT200L+ even supports linerless media printing. This series can fulfill all of your direct thermal printing requirements.

  • Specially Designed Mechanism
  • Compatible Interface
  • Large Memory
  • User-Friendly Operation
Print Method

Direct Thermal

Resolution

203 dpi (8 dots/ mm), 300 dpi (12 dots/ mm)

Print Speed

5 IPS (127 mm / s), 7 IPS (178 mm / s)

Print Width

2,24” (57 mm), 4,25” (108 mm)

Print Length

Min. 0,16” (4 mm)**; Max. 30“(762 mm), Min. 0,16” (4 mm)**; Max. 68” (1727 mm)

Processor

32 Bit RISC CPU

Memory

128 MB Flash, 128 MB SDRAM

Interfaces

Ethernet 10/100 Mbps, Serial port: RS-232 (DB-9), USB 2.0 (B-Type)

Ribbon

N/A

Control Panel

Calibration button, Calibration button, Color TFT LCD with navigation button, Function Key : FEED, Power on/off

Series

DT Series


Brochures Quick guide User manual Video Logistic & Transportation
Description

The DT200+ series is a cleverly conceived design that combines multiple capabilities into a single platform. It provides 203 dpi or 300 dpi printing resolution and the DT200i+ features a 2.4-inch color display for easy operation. An extensive range of optional accessories are also available, and the DT200L+ even supports linerless media printing. This series can fulfill all of your direct thermal printing requirements.

  • Specially Designed Mechanism
  • Compatible Interface
  • Large Memory
  • User-Friendly Operation
Additional information
Print Method

Direct Thermal

Resolution

203 dpi (8 dots/ mm), 300 dpi (12 dots/ mm)

Print Speed

5 IPS (127 mm / s), 7 IPS (178 mm / s)

Print Width

2,24” (57 mm), 4,25” (108 mm)

Print Length

Min. 0,16” (4 mm)**; Max. 30“(762 mm), Min. 0,16” (4 mm)**; Max. 68” (1727 mm)

Processor

32 Bit RISC CPU

Memory

128 MB Flash, 128 MB SDRAM

Interfaces

Ethernet 10/100 Mbps, Serial port: RS-232 (DB-9), USB 2.0 (B-Type)

Ribbon

N/A

Control Panel

Calibration button, Calibration button, Color TFT LCD with navigation button, Function Key : FEED, Power on/off

Series

DT Series
