RT823i+ / RT833i+ / RT863i+

The Ultimate Printer for Your Creative Needs

Description
Additional information

The RT800i+ series has a variety of features that make it the perfect choice for any creative project. This series has a 3.2-inch color touchscreen LCD panel designed for ease of use. It leads the industry with 3 USB ports as a standardfeature, allowing extensive integration with several devices like flash drives, scanners, and keyboards for extended memory and standalone operation. The RT863i+ can produce high-quality prints with 600dpi resolution and a 300m ribbon capacity.

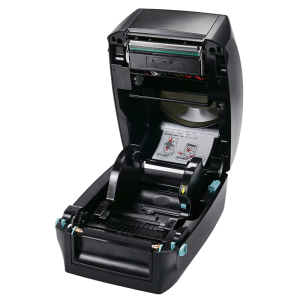

Ingenious Mechanism Design

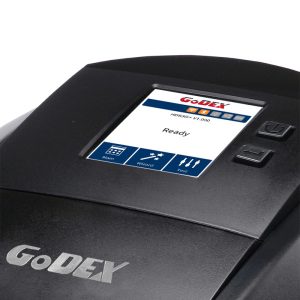

Intuitive 3.2” Touch Screen
Support Various Printing Resolution

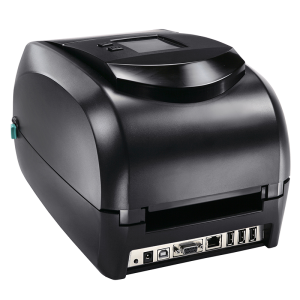

Multiple Connection Interfaces
Easy-to-Use Auto-Calibration Button
Large Memory

Print Method	Direct Thermal, Thermal Transfer
Resolution	203 dpi (8 dots/ mm), 300 dpi (12 dots/ mm), 600 dpi (24 chấm / mm)
Print Speed	5 IPS (127 mm / s), 7 IPS (178 mm / s), Up to 3 IPS (76,2 mm/s)
Print Length	Min. 0,16” (4 mm) ; Max. 125,98” (3200 mm), Min. 0,16” (4 mm) ; Max. 279,53” (7100mm), Min. 0,16” (4 mm)** ; Max. 31,5” (800 mm)
Print Width	4,16” (105,7 mm), 4,25” (108 mm)
Memory	Flash 128 MB, SDRAM 128 MB
Interfaces	3 USB Host (Type A), Ethernet 10/100 Mbps, Serial port: RS-232 (DB-9), USB 2.0 (B-Type)
Series	RT Series
Processor	32 Bit RISC CPU
Ribbon	Chiều dài 984” (300 m), Core diameter: 1” (25,4 mm), Core diameter: 2,67“ (68 mm), Width: 1,18” Min. – 4,33” (30 mm – 110 mm) Max.
Control Panel	Calibration button, Function Key : FEED, Màn hình cảm ứng màu LCD 3,2'', Power on/off

Brochures Quick guide User manual Video Special Materials

Description

Ingenious Mechanism Design
Intuitive 3.2” Touch Screen
Support Various Printing Resolution
Multiple Connection Interfaces
Easy-to-Use Auto-Calibration Button
Large Memory

Additional information

Print Method	Direct Thermal, Thermal Transfer
Resolution	203 dpi (8 dots/ mm), 300 dpi (12 dots/ mm), 600 dpi (24 chấm / mm)
Print Speed	5 IPS (127 mm / s), 7 IPS (178 mm / s), Up to 3 IPS (76,2 mm/s)
Print Length	Min. 0,16” (4 mm) ; Max. 125,98” (3200 mm), Min. 0,16” (4 mm) ; Max. 279,53” (7100mm), Min. 0,16” (4 mm)** ; Max. 31,5” (800 mm)
Print Width	4,16” (105,7 mm), 4,25” (108 mm)
Memory	Flash 128 MB, SDRAM 128 MB
Interfaces	3 USB Host (Type A), Ethernet 10/100 Mbps, Serial port: RS-232 (DB-9), USB 2.0 (B-Type)
Series	RT Series
Processor	32 Bit RISC CPU
Ribbon	Chiều dài 984” (300 m), Core diameter: 1” (25,4 mm), Core diameter: 2,67“ (68 mm), Width: 1,18” Min. – 4,33” (30 mm – 110 mm) Max.
Control Panel	Calibration button, Function Key : FEED, Màn hình cảm ứng màu LCD 3,2'', Power on/off
