T10 / T20

The Rewinder Everyone Can Use

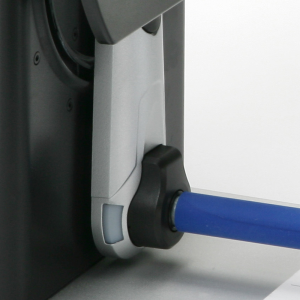

The T10 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind “inside or outside” label rolls.

  • Can be used with all Godex’s printers.
  • Supports inside and outside label rewinding.
  • Stylish appearance plus a rugged design for long term reliability.

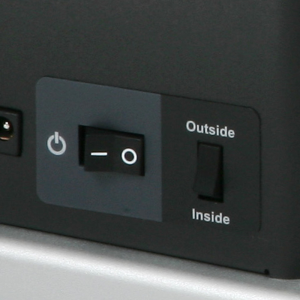

  • Colored LED indicator provides rewinder operation status.

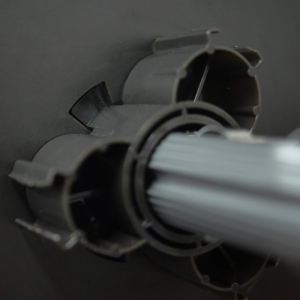

  • Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3″ (76 mm – 76.6 mm); Core and coreless kits included.
Paper Width

4.72” (Max.) / 7” (Max.)

Rewind Speed

2~14 IPS

Label Roll

8” (Max.) / 6” (Max.)

Core Roll

Coreless, 1” (25.2~25.6mm), 1.5”x2 (37.4~38.0mm & 40~40.6mm), 3” (76~76.6mm)

Label Roll Weight

5 Kg

Rewinding

Label Inside / Outside

Power

100~240VAC 24W, 24V Adapter

Dimension

303mm*180mm*349mm / 303mm*180mm*394mm

Agency Approvals

CE, FCC Class A, UKCA

Weight

5 Kg (11 lb)


Description

The T10 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind “inside or outside” label rolls.

  • Can be used with all Godex’s printers.
  • Supports inside and outside label rewinding.
  • Stylish appearance plus a rugged design for long term reliability.
  • Colored LED indicator provides rewinder operation status.
  • Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3″ (76 mm – 76.6 mm); Core and coreless kits included.
Additional information
Paper Width

4.72” (Max.) / 7” (Max.)

Rewind Speed

2~14 IPS

Label Roll

8” (Max.) / 6” (Max.)

Core Roll

Coreless, 1” (25.2~25.6mm), 1.5”x2 (37.4~38.0mm & 40~40.6mm), 3” (76~76.6mm)

Label Roll Weight

5 Kg

Rewinding

Label Inside / Outside

Power

100~240VAC 24W, 24V Adapter

Dimension

303mm*180mm*349mm / 303mm*180mm*394mm

Agency Approvals

CE, FCC Class A, UKCA

Weight

5 Kg (11 lb)
